| 定子外径/ Stator O.D. | Ф100 mm | |||
| 转子内径/ Rotor I.D. | Ф17/ 19.5 mm | |||
| 额定电压设计范围/Rated Voltage Scope | 24～750V | |||
| 额定转速设计范围/ Rated Speed Scope | 800～10000rpm | |||
| 额定扭矩设计范围/Rated Torque Scope | 0～8.5 Nm | |||

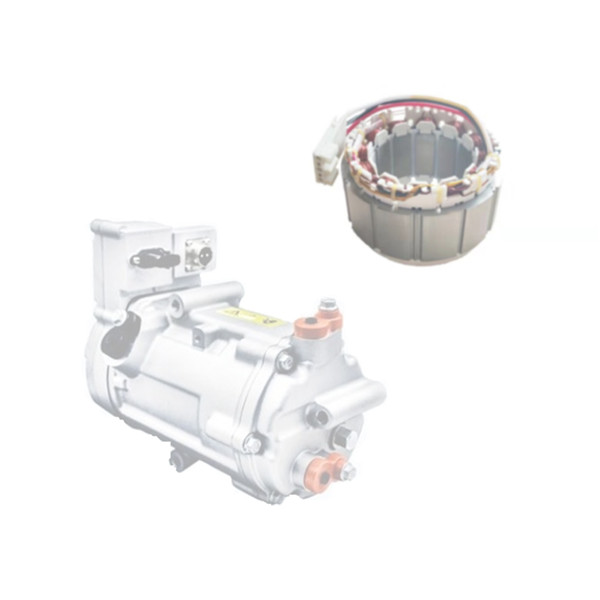

| 适用压缩机排量/application situation(Ref) | 20-60cc | |||
| 额定电压 | 压缩机排量 | 叠 高 | 转速范围 | 额定转速 | 额定扭矩(参考) | 额定功率(参考) | 额定电流(参考) | 额定效率 | 最大功率 | 绝缘等级 |
| Rated Voltage | Displacement | Core Height | Speed Scope | Rated Speed | Rated Torque | Rated Power | Rated Current | Rated EFF | Max. Power | Insulation |
| （V） | （cc） | （mm） | (rpm) | (rpm) | (N.m) | (W) | (A) | ( % ) | (W) | |
| 24 | 20 | 30 | 0～4000 | 3500 | 2.3 | 840 | 35 | 87% | 1350 | E |
| 72 | 22 | 30 | 0～4500 | 3800 | 2.5 | 950 | 13.2 | 89% | 1500 | E |
| 144 | 22 | 45 | 0～4500 | 3200 | 2.5 | 840 | 5.8 | 90% | 1400 | E |
| 320 | 27 | 30 | 0～6000 | 4000 | 3.2 | 1350 | 4.2 | 92% | 2800 | E |
| 600 | 36 | 45 | 0～8000 | 5000 | 4.2 | 2100 | 3.5 | 92% | 4200 | E |
